Mechatronical hydraulic teaching and research position with electronic control system

Download description in PDF:
chart-1-        chart-2-        article

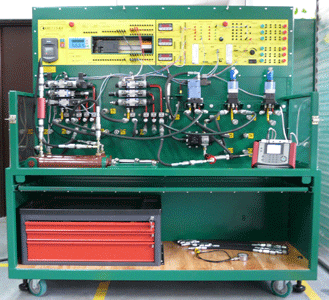

    Teaching and research position is created in such a way that student using it with proper literature and norms could:

1. explain principle of operation and construction of hydraulic engines (linear and rotational);
2. explain principle of operation and construction of hydraulic pump and other pressure generators (e.g. accumulators, multipliers, power units);
3. explain principle of operation of electrohydraulic (solenoid) and hydraulic steering and protecting valves for mechatronical drives and systems;
4. explain principle of operation and construction of sensors, relays and measurement apparatus used in hydraulic and mechatronical systems;
5. select, using computed results, datasheets, catalogs, electrohydraulic and electrical items (pumps, valves, cylinders, converters etc.) and construct electrohydraulic system;
6. select, design and carry out system of contactors and relays for steereng of hydraulic sets;
7. use the information technology for the designing hydraulic devices and systems;
8. using teaching position analyze characteristics and parameters of selected hydraulic devices.
